Swing door operator push-pull construction

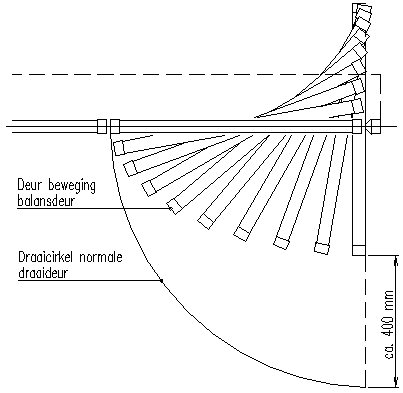

Push-pull doors are applicable as single and double construction, suitable in those situations where a limited turning cycle is desired. For doors up to 70 kgs with a maximum construction size of 1000 times 2200 mm, including revolving frame and upper guiding. The door can be used in single and double construction as interior and exterior door. If using as exterior door the turning circle is outwards with respect to manual operation in emergency situations.

A UWD2200 push-pull single construction is suitable for an optimum width of passage up to a maximum door weight of 70 kgs. In situations where a limited turning circle is desirable.

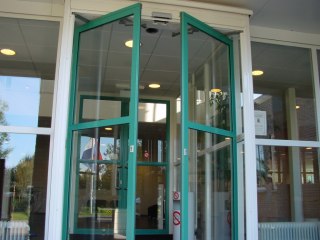

A UWD2200 push-pull double construction is suitable for a maximum width of passage to be opened quickly or is desirable for busy and crowded passenger travel. In situations where a minimum turning circle is desirable.

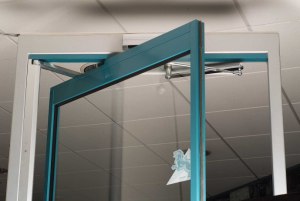

To be mounted as two separate drives or fitted with a continuous design cover.
